The Offical Dyno Sheet Thread

Discussion in 'Engine & Performance Modifications' started by Dysphagia, Dec 1, 2007.

  1. Dysphagia

    Dysphagia Full Access Member

    Messages:
    500
    Likes Received:
    0
    Joined:
    Nov 6, 2007
    Location:
    ABQ, NM
    I'll start

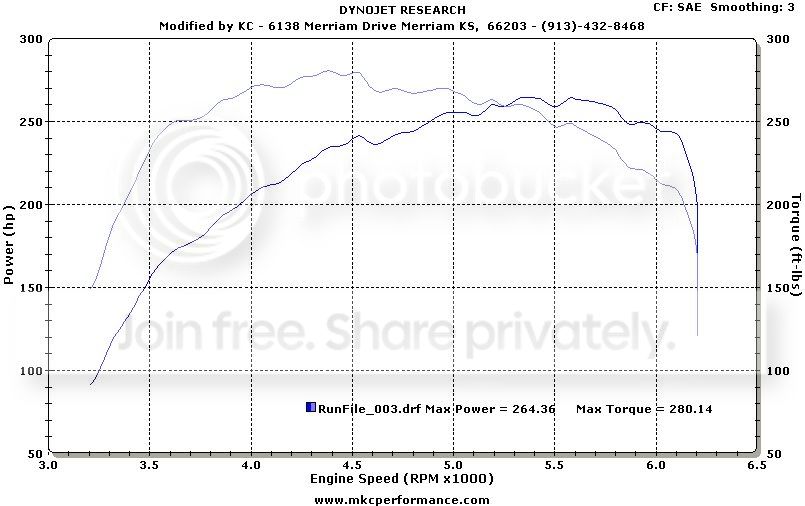

    AGP 3147 somewhere between 14.6 and 16.6psi
    [​IMG]

    Stock turbo
    [​IMG]

  2. nevinsrt

    nevinsrt Getaway driver for hire

    Messages:
    14,747
    Likes Received:
    0
    Joined:
    Nov 7, 2007
    Location:
    Albuquerque, NM

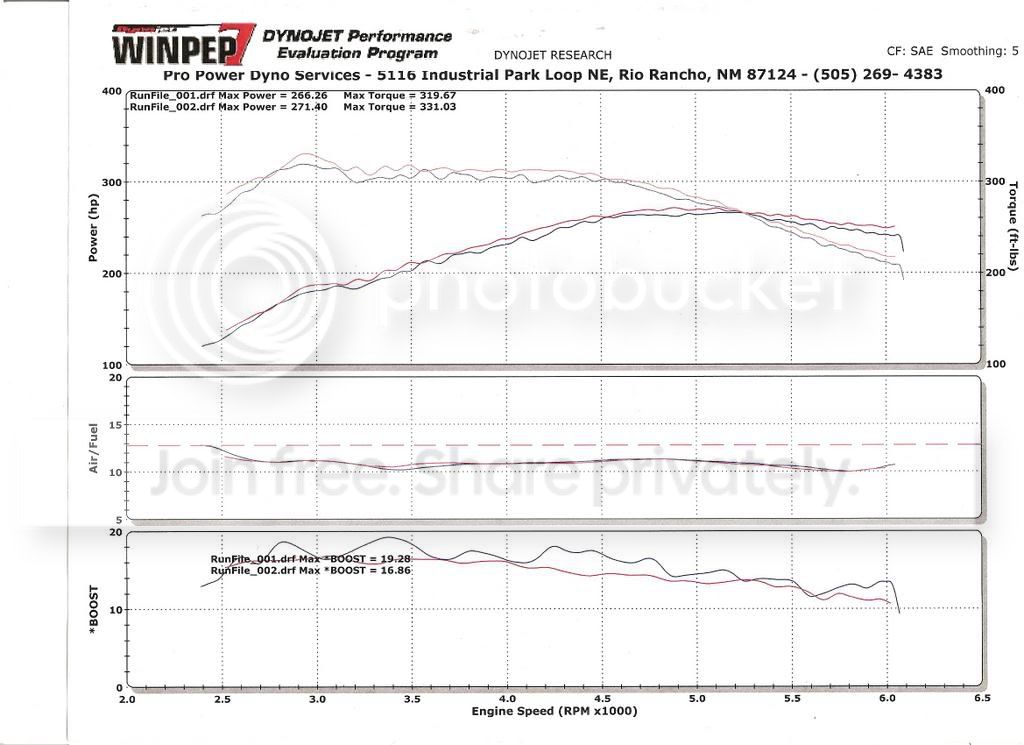

    Stock Turbo spiking 21psi holding 15
    no computer and no tune

    [​IMG]

  3. SRT4Does12s

    SRT4Does12s New Member

    Messages:
    1,085
    Likes Received:
    0
    Joined:
    Nov 6, 2007
    Location:
    Albuquerque NM
    damn nev getting a little on the lean side there for a bit.

  4. Trojan

    Trojan Trillions Bro! Right on!

    Messages:
    1,428
    Likes Received:
    0
    Joined:
    Nov 13, 2007
    Location:
    So Cal

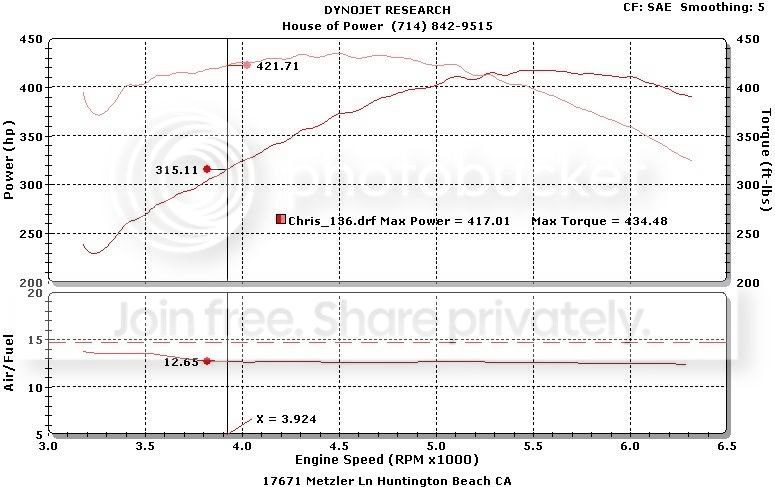

    Heres my strokers lastest dyno.

    [​IMG]

  5. kingnate

    kingnate Full Access Member

    Messages:
    1,496
    Likes Received:
    0
    Joined:
    Nov 6, 2007
    Location:
    ABQ, NM
    S1 ECU, thermal exhaust o2 back, s2 wga 0 preload

    I think I was still getting some compressor surge from the wga so I am gonna get new numbers soon hopefully.
    [​IMG]

    Last edited: Jan 16, 2008
  6. FlameRed04

    FlameRed04 New Member

    Messages:
    4
    Likes Received:
    0
    Joined:
    Mar 9, 2008
    Location:
    Terre Haute, IN
    Just did this yesterday on my stock turbo SRT-4, 4th gear pull.

    [​IMG]

  7. SRT4Does12s

    SRT4Does12s New Member

    Messages:
    1,085
    Likes Received:
    0
    Joined:
    Nov 6, 2007
    Location:
    Albuquerque NM

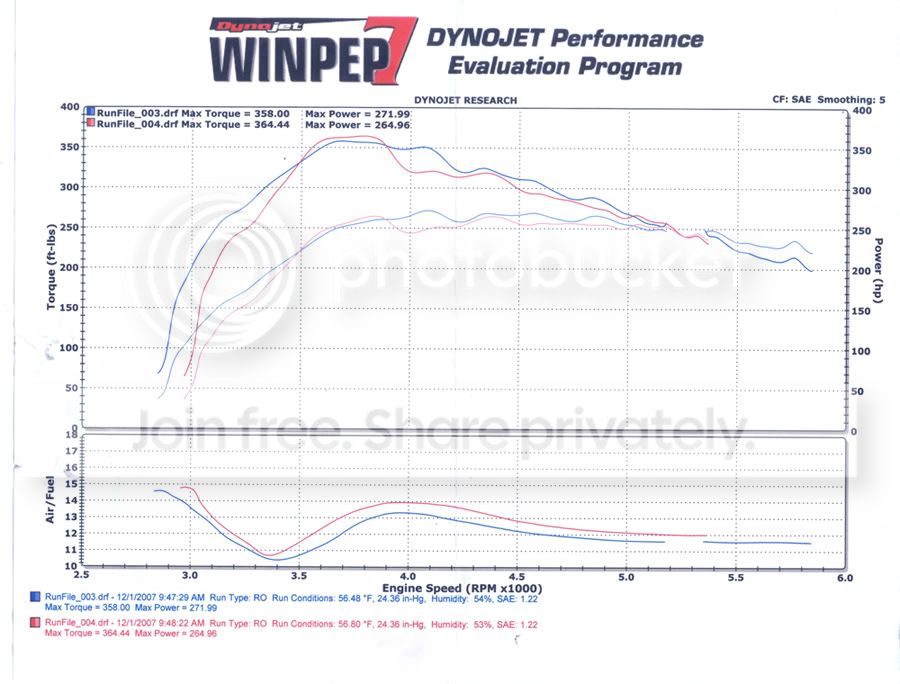

    here is my dyno chart... i think i could have done better mid range.

    [​IMG]

  8. HalV48

    HalV48 They Call Me Patron

    Messages:
    5,243
    Likes Received:
    0
    Joined:
    Oct 10, 2007
    Location:
    Chandler, Arizona
    My old setup is gone. Did 596/629 with a 150 shot. New motor with make this look like stock numbers.

  9. master_1011

    master_1011 The Man.

    Messages:
    2,758
    Likes Received:
    0
    Joined:
    Dec 3, 2007
    Location:
    Ventura, CA
    lulz...:rofl:

  10. master_1011

    master_1011 The Man.

    Messages:
    2,758
    Likes Received:
    0
    Joined:
    Dec 3, 2007
    Location:
    Ventura, CA
    Here is my latest...even though it's a year old...lulz....

    311 hp 390 tq. Notice the "flat line" of the slipping clutch....:cry:

    AFR's pegged on 10.0 (on my wideband...no sniffer)

    Boost was spiking 20, holding about 17 or so...

    [​IMG]

  11. turbosocks

    turbosocks srt n00b

    Messages:
    543
    Likes Received:
    0
    Joined:
    Feb 19, 2008
    Location:
    ABQ but from detroit
    i need to get astheskyfalls to post his dyno he just got done at solidtech.

    he hit 375hp/379ft.lbs. his curve is very smooth.

  12. SRT4Does12s

    SRT4Does12s New Member

    Messages:
    1,085
    Likes Received:
    0
    Joined:
    Nov 6, 2007
    Location:
    Albuquerque NM
    ill post up my real graph in a bit. i have a pretty nice curve

  13. Dysphagia

    Dysphagia Full Access Member

    Messages:
    500
    Likes Received:
    0
    Joined:
    Nov 6, 2007
    Location:
    ABQ, NM
    i would like to see what the .48 a/r graph looks like

  14. Dysphagia

    Dysphagia Full Access Member

    Messages:
    500
    Likes Received:
    0
    Joined:
    Nov 6, 2007
    Location:
    ABQ, NM
    this is astheskyfalls' dyno its a 3147 with the .63a/r exhaust side
    [​IMG]

  15. StillANeon

    StillANeon Full Access Member

    Messages:
    968
    Likes Received:
    0
    Joined:
    Dec 20, 2007
    Location:
    Kansas
    [​IMG]

    Stage 1 ECU
    MPX 3'' Exhaust. AGP 3'' 02 housing
    CTI Chargepipe
    Injen SRI
    14psi to 11 psi by redline. (Stock boost, stock WGA)

    Last edited: Dec 23, 2008
  16. 505streetracer

    505streetracer Full Access Member

    Messages:
    118
    Likes Received:
    0
    Joined:
    Mar 8, 2008
    Location:
    originally from chicago but in ABQ for 21yrs now
    Here is my dyno sheet on my stocker soon to be s3 (with LOTS of custom goodies) but this is what i got for now!!!!!!!!!
    [​IMG]
    Not too shabby for a stock turbo, its ported but its still stock..Since this dyno i have installed a few goodies
    DCR Meth Injection Kit w/150 psi snowPerformance w/i motor, Custom oil catch can (before valve cover), Stage 3 Fuel Rail, Energy suspension rear end links, Mopar RearTension Rods w/energy suspension bushings, Walbro 255 fuel pump, Custom top and bottom motor mounts, racing FMIC, Custom oil catch can(after valve cover), Hawk HP+ front and rear breaks, AEM UEGO wideband, custom upper hard pipe, ACT street clutch, lite weight flywheel, upgraded t.o bearings and t.o.fork, Rebuilt trany w/ pwerks upgraded gears, shift forks, syncros, harden clips, and pivot bearings so as of now my HP and TQ is.......???????....LOL

  17. StillANeon

    StillANeon Full Access Member

    Messages:
    968
    Likes Received:
    0
    Joined:
    Dec 20, 2007
    Location:
    Kansas
    Well.. what is all done to the car with those numbers. ^^^

  18. Cygnus

    Cygnus Platinum Supporting Member

    Messages:
    4,679
    Likes Received:
    0
    Joined:
    Dec 4, 2007
    Location:
    St. Pete, FL
    Well, instead of posting a pic of the dyno sheet (too lazy to take one right now)... I will just post the link to my dyno vid...

    http://videos.streetfire.net/video/My-S3-SRT4-Dyno-Pulls_702855.htm

    Mods in vid, and would like to add...
    Stock Airbox
    Stock S3 O2 Housing
    Balance Shaft Assembly/Chain still intact
    Stock Clutch
    Untuned

    Since then I've added an AEM SRI (really doesn't make much of a difference if any at all)

  19. LegMaker

    LegMaker LMI - LegMakerIntakes

    Messages:
    10,483
    Likes Received:
    0
    Joined:
    Oct 25, 2007
    Location:
    orlando
    i know this is the 4 section, but what the hell...

    here is my last one done by johan at diablosport...

    shows the before and after of my fmic install

    - 440 rwhp before
    - 520 rwhp after

    i sure like air/air set ups!!! lol

    [​IMG]

  20. Dookie

    Dookie Foe twenny sics

    Messages:
    2,884
    Likes Received:
    0
    Joined:
    Nov 6, 2007
    Location:
    Baton Rouge, Louisiana
    Chris, is that at the same boost level? Can't be...Look at all that torque you gained...jeesh
