Pics for NOS install

Hope that you guys have or can make a few pics for me to speed up this weekends install.

Reading the instructions it states the white wire gets tapped into the "output voltage lead from the TPS". Specifics/pics on this would be great.

Which wire did you tap for the 12V arming switch?

Fuel delivery line. A pic of this setup would be most appreciated.

Also, are you guys using a "blow down tube"?

Thanks for the help! Hope to join the juice club soon.



Its about time bro!!! I can have a few pics up tonight for ya. I have a blow down tube. They arent long enough to go all the way outside the vehicle, so I have mine going through the floor, and then a rubber tube connected to it, going to the outside.

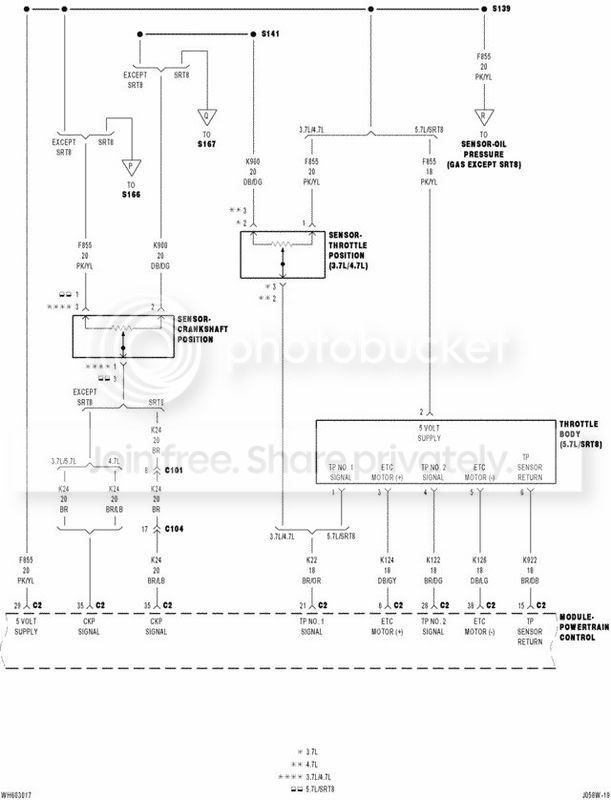

The best way for the tps wire is to go straight to the gas peddle wires. I believe its the second brown wire in.



Send JMATT or NorCalSRT8 a PM...



This is a writeup by Jmatt. http://www.lxforums.com/board/showthread.php?t=73306



Thanks Ari, I'm just tying to keep up.

Thanks Chris for the link to Matt's write up. I go to see his setup in person a few weeks ago when he ran the 10.89...left my camera at home of course.

Any of you heard from Dave @ B&G lately? I need that nitrous tune and he has not answered emails or PM's in the last 10 days.



For your TPS tap:



I had a PM session with Dave yesterday.

Either PM Dave or ask Dave a question in his forum.



He's answering his PM or try calling him at the shop its hit and miss with him dont take it personal we all either wait for him sometimes or get him on the first call



Hope this helps...
http://www.srtconnection.com/forums/showthread.php?t=4241



Here is a link to some pic's of my install..not sure what details I have in there ..
TPS ..I was thinking white w/brown stripe by gas peddle..
I do not remember what I used for power becuse I pulled whole fuse box off from under hood and wire tapped off of one with a relay..
For installing bottle in rear of Jeep there is a rubber grommet you can pop out and a plastic cover over that so you should not have to drill hole..I ran wire and N2o line and use plastic loom and it still fit through hole...I have not insalled blow down tube yet..



http://www.putfile.com/billyboys/albums



Thanks everyone. Surely I can get it done with all this info.

As for Dave, he has always been very prompt getting back to me, so I was just wondering if he was out of pocket for some reason.

I'll keep trying to reach him.
